AUTOMATIC SPRING DRIVE 3-DAY CHRONOGRAPH GMT
Caliber 9R96
Caliber 9R96 is a version of Caliber 9R86 specially adjusted to deliver an even higher level of precision. Caliber 9R86 delivers a precision rate of ±15 seconds per month (equivalent to ±1 second per day), whereas Caliber 9R96 delivers ±10 seconds per month (equivalent to ±0.5 second per day).
The difference between the two movements lies in the choice and testing of the quartz crystal oscillator. While all 9R Spring Drive movements use a quartz crystal oscillator in the regulator, only oscillators which exhibit particularly excellent performance are selected for use in Caliber 9R96.
The Spring Drive Chronograph may well be the world's most accurate spring-driven chronograph. It measures elapsed time not to the nearest fraction of a second but exactly, thanks to the fact that the glide motion hands stop at the very instant that the button is pressed. The 72 hour power reserve is maintained even if the chronograph is in operation.

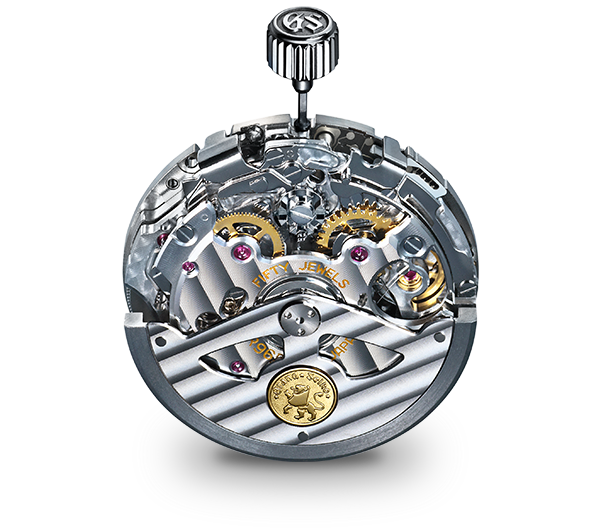

The Grand Seiko lion in 18K gold graces the oscillating weight to symbolize the enhanced accuracy.
Spezifikationen
| Antriebssystem | Automatic with manual winding |
|---|---|
| Ganggenauigkeit | ±0.5 second per day (±10 seconds per month) |
| Gangreserve | Approximately 72 hours |
| Steine | 50 jewels |
| Bemerkungen | -Power reserve indicator
-Dual time function with 24-hour hand -Quick correction function of time difference adjusting to a calendar -Stopwatch function |
COLUMN WHEEL SYSTEM
Column Wheel System for Exact Operation of the Chronograph
A column wheel system is used to control the starting and stopping of the stopwatch. Its system ensures precise, error free control of the chronograph operation. The column wheel is designed to reduce stress on the clutch and lever, minimizing impact on the movement when the start/stop button is pushed.
The column wheel. The perfect start and stop mechanism
- When you press the START button, the end of the action lever rotates the pillar wheel to the right.
- The rotating column wheel causes the end of the start-stop lever on the pillar to fall between the pillars, causing two closed start-stop levers to open.
- The clutch ring that is released by the two start-stop levers engages with a fourth gear wheel. (The fourth wheel is held against the clutch ring by the force of a spring.)
- The second hand of the stopwatch starts to move.
VERTICAL CLUTCH
A transmission system that ensures that the second hand does not jump when the START button is pressed
The vertical clutch system was created to prevent the second hand from jumping when the stopwatch START button is pressed. In the vertical clutch system, when the stopwatch START button is pressed, the start-stop lever opens, the fourth wheel and the clutch ring are engaged by the pushing force of the clutch spring, and the stopwatch begins to measure time.
The shuddering of the stopwatch that easily occurs with horizontal clutches is eliminated, and timekeeping is more accurate.
READY/START MODE
Greater Accuracy
The high accuracy of the Spring Drive caliber itself would not have meant much if this accuracy were lost in the operation of the stopwatch. To minimize time measurement errors when the chronograph buttons are pressed, the operation of the buttons was made as precise as humanly possible. A two-step READY/START mode was adopted to ensure that the stopwatch operation would be error-free. It is the same mechanism as is used in Seiko’s hand held stopwatches for professional sports use. The chronograph enters READY mode when the push button is lightly pressed. A further press then starts the stopwatch.
SCREW-LOCK BUTTON MECHANISM
Preventing Operational Error
The chronograph push-button uses a screw-lock mechanism. Turning the screw cover lowers a pipe inside, allowing the START button to be pressed. This newly developed mechanism prevents accidental operation of the button, resulting in more accurate time measurement.
Was macht die 9R Spring Drive so besonders?
Spring Drive, eine der größten Innovationen in der Geschichte der modernen Uhrmacherkunst, reguliert ein federbetriebenes Uhrwerk mit modernster elektronischer Technologie, die ohne Batterien oder andere externe Stromquellen auskommt. Die einzige Energiequelle ist eine Aufzugsfeder, die eine Reihe von Zahnrädern antreibt. Ein Rotor, der mit dem Ende dieser Zahnräder verbunden ist, erzeugt eine kleine elektrische Ladung, die einen elektronischen Schaltkreis und einen Quarzoszillator aktiviert. Die Ganggenauigkeit ist für eine Uhr mit Federantrieb beispiellos. Die Entwicklung des 9R-Spring-Drive-Uhrwerks war nur möglich, weil Grand Seiko einer der wenigen Hersteller ist, die sowohl über Fachwissen im Bereich mechanischer als auch elektronischer Uhren verfügen.
