9R Spring Drive
Spring Drive is a unique watch technology. It generates energy like every other luxury mechanical watch but combines this with an electronic regulator to deliver a level of precision that no mechanical watch can match.
The development of Spring Drive was possible because Grand Seiko is one of the very few manufacturers with mastery of both electronic and mechanical watchmaking.MECHANISM
Bringing together mechanical
and electronic watchmaking for the best of both worlds.
The two key elements behind the function of any watch are its power source and its time control system.
Spring Drive is a unique movement that combines the high torque of a mechanical watch with the high precision integrated circuit (IC) control system of an electronic watch.
| Power source | Control system | |
|---|---|---|
| Mechanical watch | Mainspring High torque (motive force driving the watch) |
The wound-up mainspring exerts force to turn gears at a set speed as it unwinds, while the speed control and escapement mechanism consisting of the balance, pallet, and escape wheel govern overall precision. While precise. even the most accurate Grand Seiko models cannot compete with the accuracy of a quartz watch, with a daily rate of +8/-1 seconds. |
| Quartz watch | Battery Lower torque compared to a mechanical watch |
The battery sends electricity to a quartz oscillator, whose precise vibrations are detected by an integrated circuit (IC). The IC then moves the gears forward by exactly one second. The precision control of the IC allows for a high standard of accuracy, with Grand Seiko quartz models achieving a yearly rate of ±10 seconds. |
MECHANISM
Powered by the mainspring

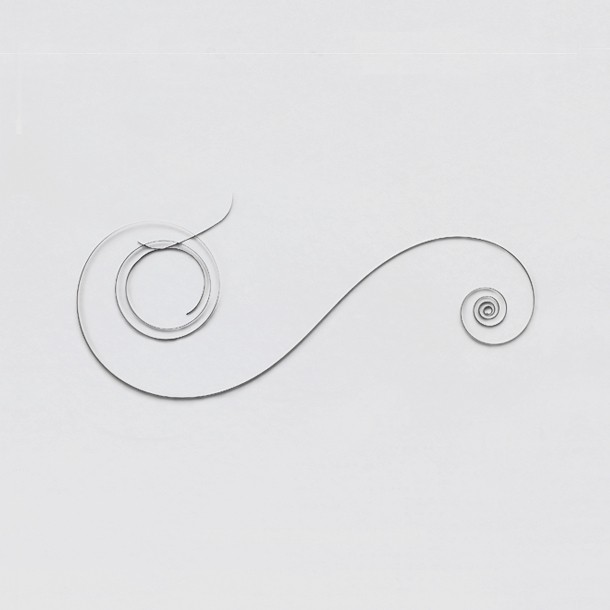

Spring Drive is powered by a mainspring, just like all other mechanical watches. This traditional way of generating power allows the watch to be entirely autonomous, with no need for a battery or other power source.
Winding the mainspring by turning the crown or by moving the wrist stores energy which is then transferred to gears and used to move the watch hands as the spring unwinds over time.
By taking advantage of the high level of torque afforded by the mainspring, the caliber needs no other power to move the long, wide hands in the smooth glide motion that is Spring Drive’s signature.
MECHANISM
Tri-Synchro Regulator

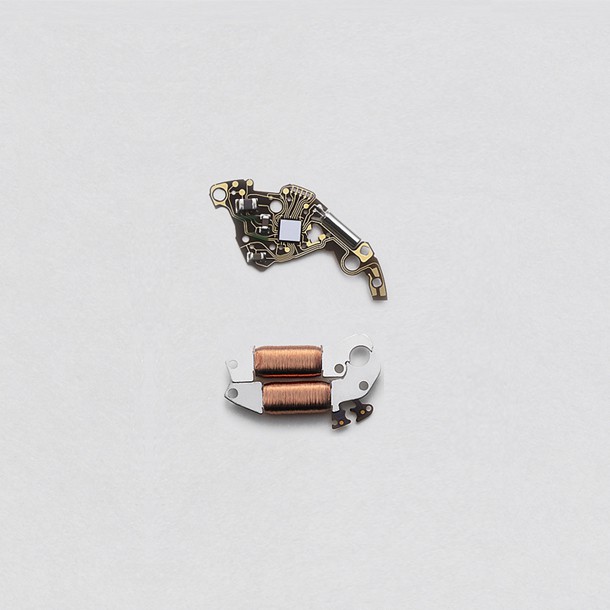

The core challenge for the team in the development of Spring Drive was energy generation and management. The solution lay in the creation of the Tri-Synchro Regulator, a device that generates a tiny electrical pulse from the motion of the mainspring and converts it into the power needed to activate a crystal oscillator and an electronic brake. The oscillator transmits a precise reference signal to the IC which applies a magnetic brake to maintain the revolution speed of a glide wheel at exactly eight revolutions a second. This precision is transferred through a gear train to the hands which display the time to a precision of ±1 second per day.
As its name suggests, the Tri-synchro Regulator uses three types of energy to regulate the moving parts and establish synchronicity:
- Mechanical power, from the mainspring
- Electrical power, creating a reference signaling via an IC/quartz oscillator
- Electromagnetic power, to apply a brake via a rotor/stator.
These three forces work in harmony to regulate the way the spring unwinds and to make possible the precise movement of the second hand.
TRI-SYNCHRO REGULATOR
1. MECHANICAL POWER
Generating electrical power from the unwinding mainspring
Spring Drive uses a system identical to that of a pedal-powered bicycle light to generate electrical power. A rotor connected to the end of the gear train acts together with a stator wound by wire to generate power. In a Spring Drive watch, the rotor, or glide wheel, makes eight full revolutions every second, generating a slight electric current.
TRI-SYNCHRO REGULATOR
2. ELECTRICAL POWER
Transmitting a precise signal through a quartz crystal oscillator
The electrical power generated by the glide wheel is used to activate a quartz oscillator and IC.
The quartz oscillator vibrates at exactly 32,768 Hz, transmitting a precise reference signal to the IC.
TRI-SYNCHRO REGULATOR
3. ELECTROMAGNETIC POWER
Applying the brake to control speed
The IC compares the reference signal from the quartz oscillator with the revolution speed of the glide wheel, and intermittently applies a magnetic brake when it detects that the glide wheel is operating too fast. This regulation of the glide wheel is transmitted to the gear train, ensuring that the watch hands move with precision.
CRAFTSMANSHIP

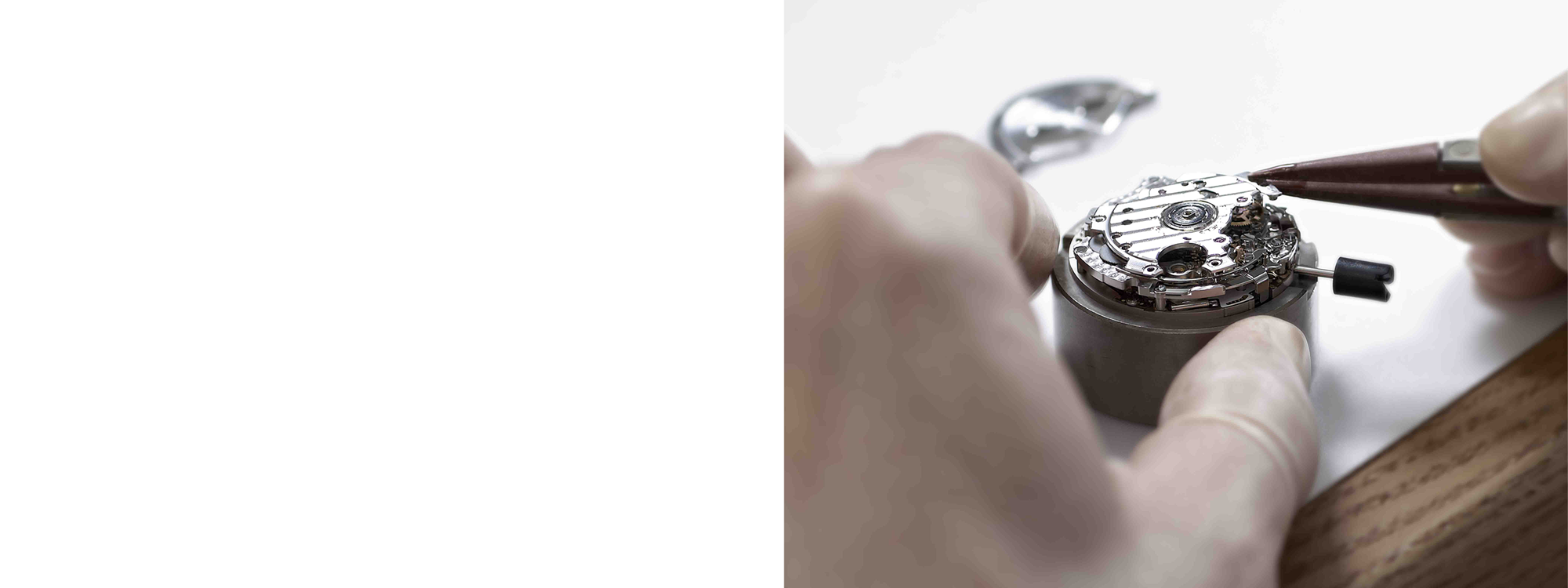

Master craftsmanship in assembly and adjustment

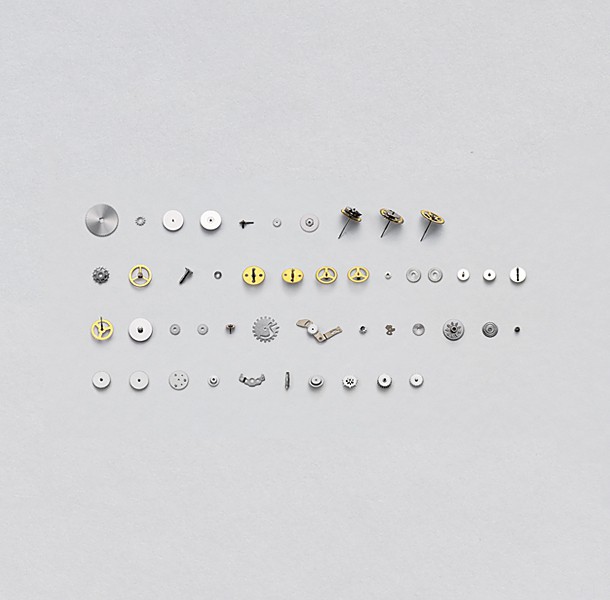

Spring Drive combines the best elements of both mechanical and electronic watches. While three-hand versions have over 200 components, versions with more functions, such as the Spring Drive chronograph have well over 300, all of which are assembled by hand.
The application of lubricating oils ensures the smooth interaction of all the components and there are no fewer than 80 lubrication points in the three hand caliber and 140 in the chronograph. The oils are applied by hand and both time and great skill are required to ensure that that the oils are applied with precision.
Design plans are based on tolerances down to the one hundredth of a millimeter. The final adjustments and refinement of the components are completed by hand, because no machine can match the skills of our craftsmen and women – watchmakers whose superior craft gives rise to the extreme precision of Spring Drive.
History
In 1977, Yoshukazu Akahane, a young watch engineer, decided to attempt the seemingly impossible, the creation of an ‘everlasting’ watch. His aim was a traditional watch, powered by a mainspring, that would deliver the one-second-a-day precision of which the company’s electronic watches were already capable. 28 years and 600 prototypes later, he realized his dream and Spring Drive was presented to the world. In 2007, and in the spirit of Akahane’s relentless pursuit of perfection, the Grand Seiko Spring Drive chronograph was born.
9R Spring Drive Movement
Movement Comparison
| Movement | Accuracy | Power reserve | Number of jewels | Features |
|---|---|---|---|---|
| Spring Drive 5 Days Caliber 9RA2 (Automatic with manual winding) |
±10 seconds per month (±0.5 second per day) | Approximately 120 hours (5 days) | 38 jewels | -Offset Magic Lever
-Dual-size Barrels -One-piece Center Bridge -Power reserve indicator |
| Spring Drive 5 Days Caliber 9RA5 (Automatic with manual winding) |
±10 seconds per month (±0.5 second per day) | Approximately 120 hours (5 days) | 38 jewels | -Offset Magic Lever
-Dual-size Barrels -One-piece Center Bridge -Power reserve indicator |
| Manual-winding 8-Day Power Reserve Spring Drive Caliber 9R01 (Manual winding) |
±0.5 seconds per day (±10 seconds per month) | Approximately 192 hours | 56 jewels | -Power reserve indicator
-Quick correction function of time difference |
| Manual-winding Spring Drive Caliber 9R02 (Manual winding) |
±1 second per day (±15 seconds per month) | Approximately 84 hours | 39 jewels | -Torque Return System
-Dual-Spring Barrel -Power reserve indicator |
| AUTOMATIC SPRING DRIVE 3-DAY CHRONOGRAPH GMT Caliber 9R96 (Automatic with manual winding) |
±0.5 second per day (±10 seconds per month) | Approximately 72 hours | 50 jewels | -Power reserve indicator
-Dual time function with 24-hour hand -Quick correction function of time difference adjusting to a calendar -Stopwatch function |
| Automatic Spring Drive 3-Day Chronograph GMT Caliber 9R86 (Automatic with manual winding) |
±1 second per day (±15 seconds per month) | Approximately 72 hours | 50 jewels | -Power reserve indicator
-Dual time function with 24-hour hand -Quick correction function of time difference adjusting to a calendar -Stopwatch function |
| Automatic Spring Drive 3-Day GMT Caliber 9R66 (Automatic with manual winding) |
±1 second per day (±15 seconds per month) | Approximately 72 hours | 30 jewels | -Power reserve indicator
-Dual time function with 24-hour hand -Quick correction function of time difference adjusting to a calendar |
| Automatic Spring Drive 3-Day Caliber 9R65 (Automatic with manual winding) |
±1 second per day (±15 seconds per month) | Approximately 72 hours | 30 jewels | -Power reserve indicator
-Date display |
| Manual-winding Spring Drive Caliber 9R16 (Automatic with manual winding) |
±0.5 second per day (±10 seconds per month) | Approximately 72 hours | 30 jewels | -Power reserve indicator
-Dual time function with 24-hour hand -Quick correction function of time difference adjusting to a calendar |
| Manual-winding Spring Drive Caliber 9R31 (Manual winding) |
±15 seconds per month(±1 second per day) | Approximately 72 hours | 30 jewels | -Dual-Spring Barrel
-Power reserve indicator |
